Automatic Timed Drain Valve for Air Compressor & Drying Machine - Electronic Auto Drain Valve with Timer - Perfect for Industrial, Workshop & Home Use

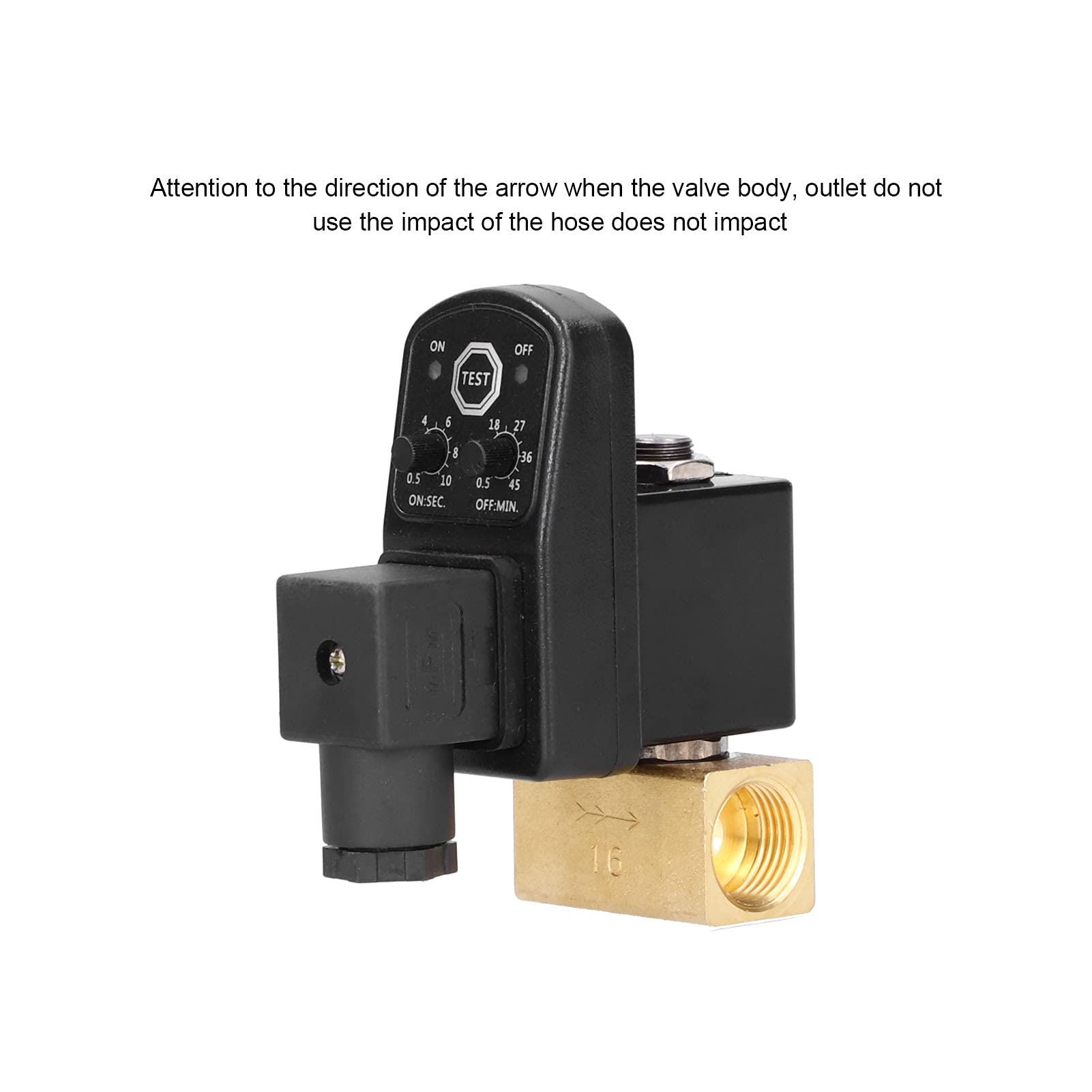

Feature:1. The valve opening time is adjustable between 0.5 and 10 seconds, and the closing time is between 0.5 and 45 minutes.2. This is a reliable, high quality drain valve to keep compressed air equipment running optimally.3. the compressed air system before installing. Always tighten the long screws on the terminal box to prevent the water from burning.4. Attention to the direction of the when the valve body, outlet do not use the impact of the hose does not impact.5. The supply voltage must be the same as the drain valve voltage; when using DC, the positive pole must be connected to the connector 1.How to Use:Timer Setting:Left knob to set the discharge time, the right knob to set the interval time; the first discharge time of 2s, the interval time is 20min, and then need to be further adjusted.Specification:Item Type: Drain ValveValve Material: BrassColor: As shown in the pictureModel: 588158Voltage: AC110V 50HzVoltage Range: 10%Time Interval(OFF): 0.5-45 minutes (adjustable)Discharge Time(ON): 0.5-10 seconds (adjustable)Manual Test Button: Yes( micro switch)The Current Consumption: Maximum 4mAAmbient Temperature: -40°C to 60°C.Protection Grade: IP65Shell Material: Flame retardant ABS plasticElectrical Connection: DIN43650AIndicator Lamp: LED indicating power ON / OFFType: Two-way direct-acting valveFlow Aperture: 5mm / 0.2inInsulation Class: HIn / Out Port Size: 1/2inMaximum Working Pressure: 1.6MpaMaximum Temperature: 90°CWeight: Approx. 542g / 19.1ozPackage List:1 x Dra
