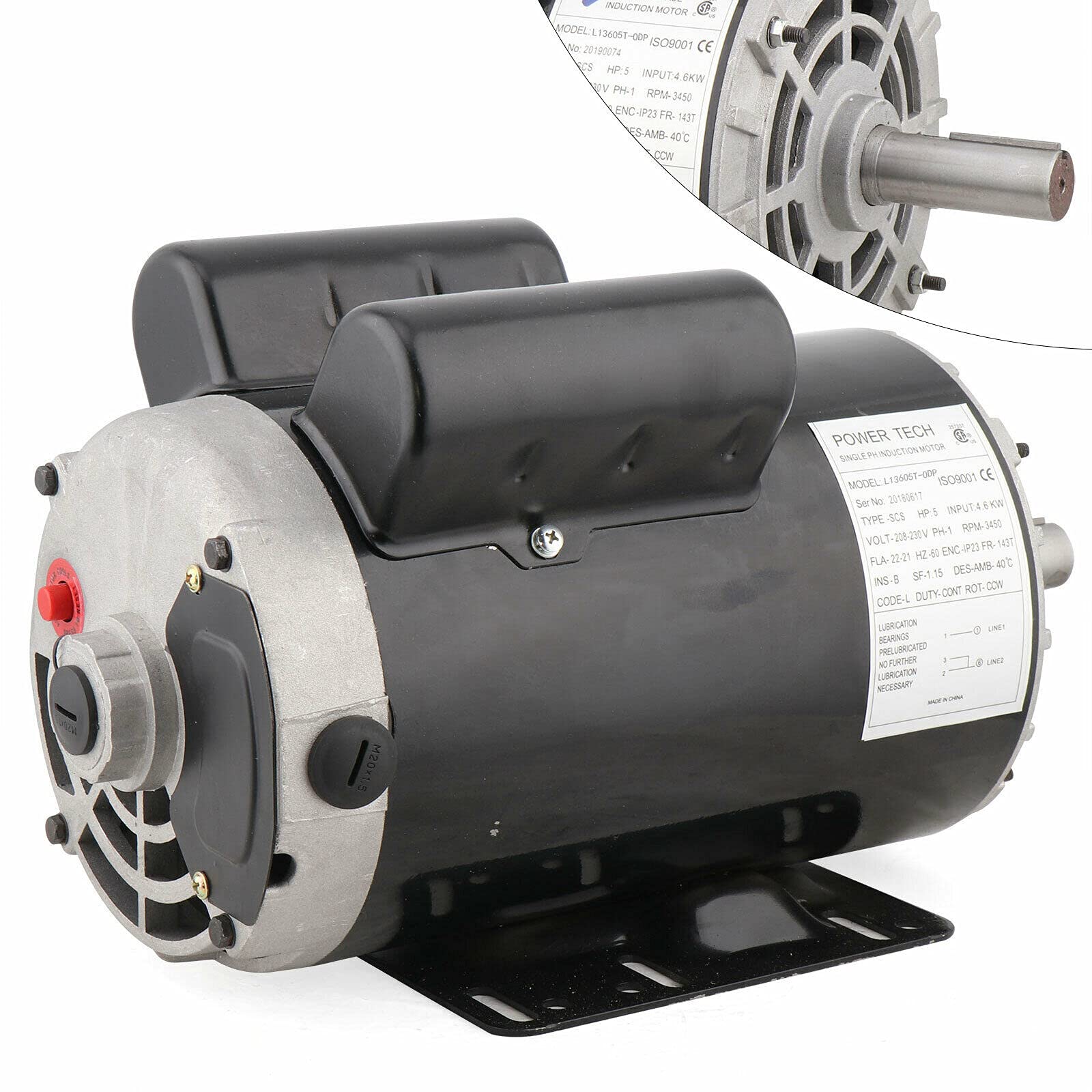

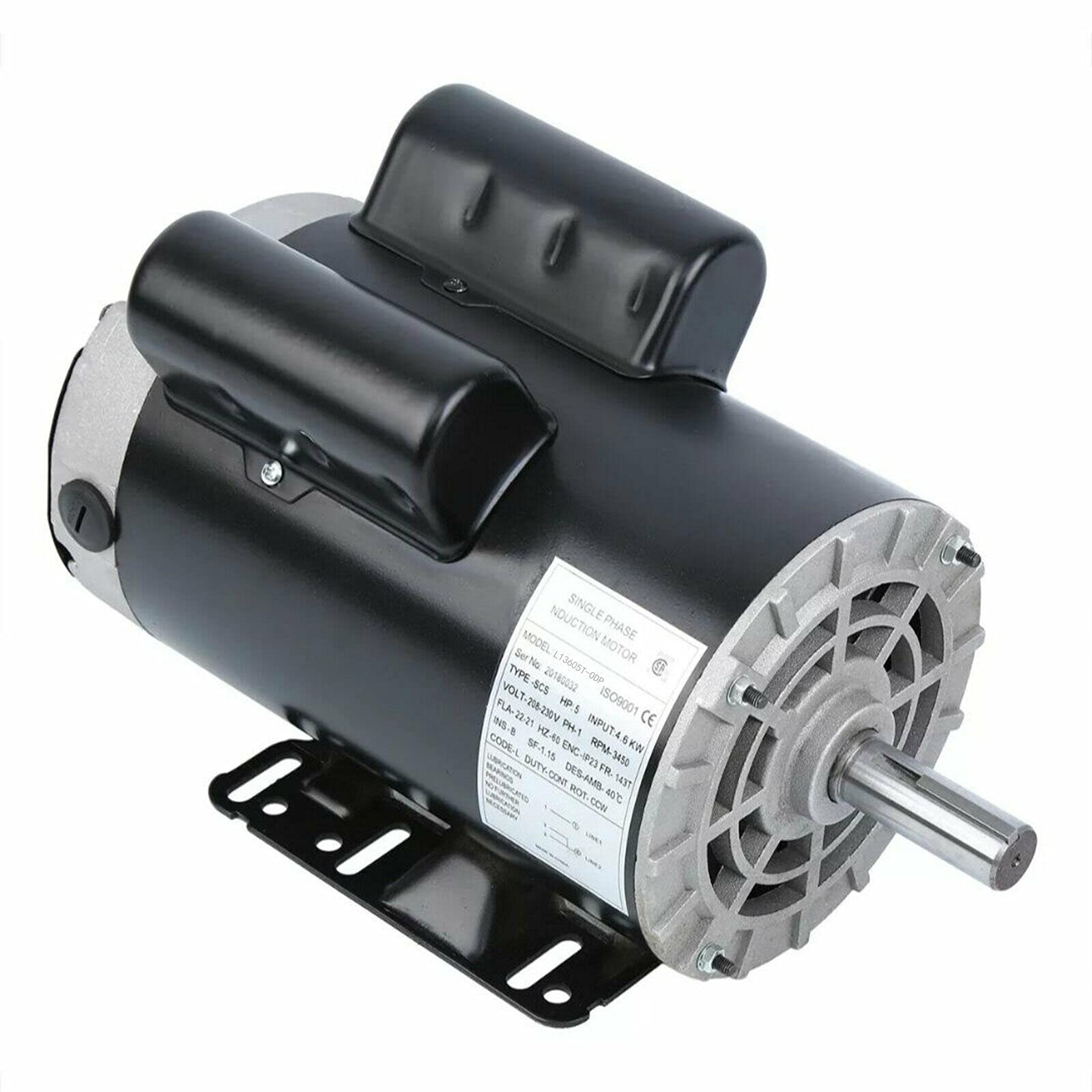

5 HP 1 Phase Air Compressor Motor 208-230V, 4.6kW, 60Hz, 143/5T Frame, 7/8" Shaft Diameter, 3450 RPM - Heavy Duty Electric Motor for Industrial & Workshop Air Compressors (US Stock)

Feature:1.Reduced starting amperage design to ensure the reduced voltage starting at rated load.2.Equipped Manual thermal overload, capacitors and high quality ball bearings to ensure the lifetime.3.Open drip-proof is better used in environment that are relatively clean and dry environments. Special design for Air Compressor duty. CCW only.4.Special design for Air Compressor duty.5.Motor is Non-Reversible CCW (Counter Clockwise) ONLY.Specification:Horsepower (HP): 5 HpAC Frequency Rating: 60 HzFrame Size: 143/5T Base RPM: 3450Volt: 208-230VINPUT: 4.6kWSF: 1.0Service Factor: 1.15Full Load Amps: 22-21Shaft Diameter: 7/8 inShaft Length: 2.25inShaft Type: KeyedENC: IP23FR: 143/5TAC Phase: Single PhaseReversible/Non-Reversible: Non-Reversible ROT: CCWOverload: Yes / Manual reset buttonAdditional Product information: Rigid Base - CL B Insulation 40 C / 104 F Ambient TempPackage includes:1 x Air Compressor MotorAttention:Not all 5 hp motors are exactly the same. So, with the new motor you're purchasing, it's vitally important that you match up the specs on your old motor. All of the information you need to know can be found right on your electric motors nameplate/sticker, which usually can be found on the side of the motor.
